Title: Mechanically Robust Bismuth-Embedded Carbon Microspheres for Ultrafast Charging and Ultrastable Sodium-Ion Batteries
Authors: Jianhai Pan, Zhefei Sun, Xiaoyu Wu, Tongchao Liu*, Yurui Xing, Jiawei Chen, Zhichen Xue, Dafu Tang, Xiaoli Dong, Hongti Zhang, Haodong Liu, Qiulong Wei, Dong-Liang Peng, Khalil Amine*, Qiaobao Zhang*

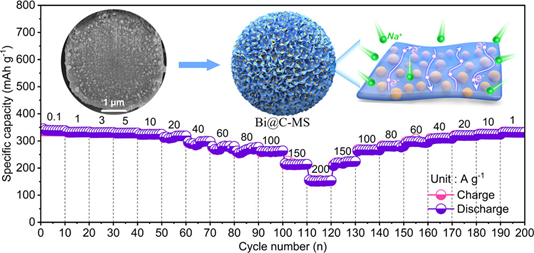

Abstract: Advancements in the development of fast-charging and long-lasting microstructured alloying anodes with high volumetric capacities are essential for enhancing the operational efficiency of sodium-ion batteries (SIBs). These anodes, however, face challenges such as declined cyclability and rate capability, primarily due to mechanical degradation reduced by significant volumetric changes (over 252%) and slow kinetics of sodium-ion storage. Herein, we introduce a novel anode design featuring densely packed bismuth (Bi) embedded within highly conductive carbon microspheres to overcome the aforementioned challenges. Remarkably, the high loading Bi anode within carbon microspheres with a high tap density of 2.59 g cm–3 possesses significant mechanical strength exceeding 590 MPa and limits volume swelling of only 10.9% post-sodiation. This anode demonstrates a high volumetric capacity (908.3 mAh cm–3), ultrafast chargeability (200 A g–1, full charge/discharge in just 5.5 s), and outstanding cyclability over 12,000 cycles and maintains exceptional cycling stability even at −30 °C. The full cell paired with a Na3V2(PO4)3 cathode retains over 80% capacity after 600 cycles at 36 C, demonstrating a remarkable rate capability of 126 C (full charge/discharge in 28.6 s). Our comprehensive experimental evaluations and chemo-mechanical simulations shed light on the mechanisms underpinning the anode’s superior performance. This development marks a significant advancement in the design of durable and fast-charging anodes for high-performance SIBs.
Full-Link: https://pubs.acs.org/doi/10.1021/jacs.4c09824
